Salicru SLC-15000-TWIN PRO2 B1
Salicru 15000 VA Uninterruptible Power Systems (UPS) On-line double conversion and DSP control (0’)

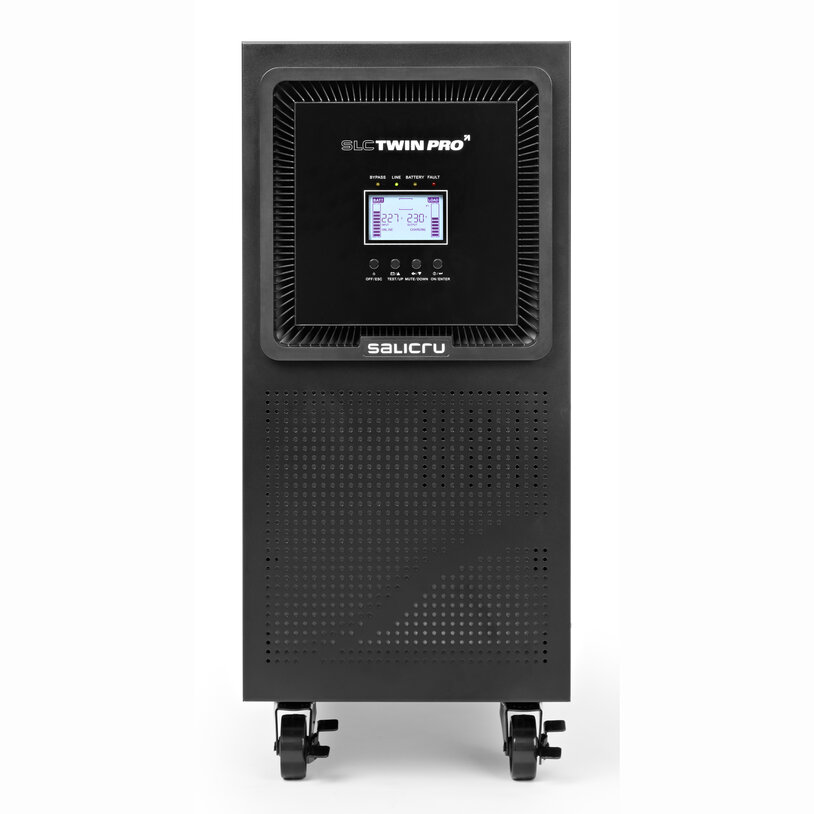

Salicru’s SLC TWIN PRO2 series UPS systems feature on-line double conversion technology, currently the most advanced for the protection of critical systems as it provides a fully stabilised and f iltered sinusoidal supply voltage. The systems come in a tower format and are available in power ratings of 4, 5, 6, 8, 10, 15 and 20 kVA.
The Salicru SLC TWIN PRO2’s output voltage is always single phase, featuring a single-phase input of 4 to 20 kVA and a three phase input of 8 to 20 kVA. All devices with single-phase input provide a unitary output power factor (1), the most optimum for systems and environments with high energy needs. Adaptability is another important feature thanks to the numerous operating modes available: On-line, Batteries, Eco-mode, Bypass, Frequency converter and Parallel redundant

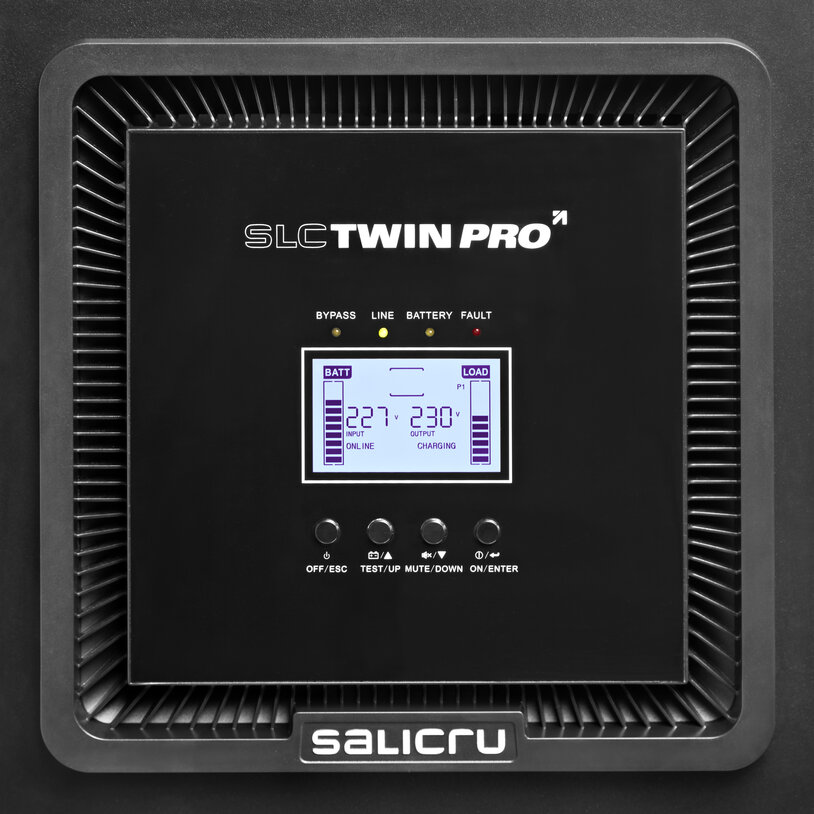

The possibilities of control and monitoring are varied: on the one hand, an LCD display + keypad for local operation of the device, and, on the other, various communication options (USB HID and RS-232 interfaces, and slot for SNMP, RS-485 and AS-400 cards) that enable the UPS to be integrated into standard or virtualised platforms for management, incident notification and remote maintenance.
Applications: Maximum continuity protection for sensitive and critical systems
Salicru’s SLC TWIN PRO2 series is the best option for providing a secure power supply to ERP systems, Business Intelligence, CRM solutions, intranets/extranets and corporate networks in the event of a wide range of possible disturbances (micro power outages, voltage fluctuations, frequency variations, harmonics, transients, etc.), which can cause irreparable damage or incur high costs in all of these critical systems
Technical Specifications
| Technology | |
|---|---|
| Technology Type | On-line double conversion |
| Format | |
| Format Type | Tower |
| Input | |
| Voltage | 220 / 230 / 240 V |
| Voltage Range | 110 ÷ 276 V (2) |
| Rated Frequency | 50 / 60 Hz |
| Frequency Range | ±10% |
| Total Harmonic Distortion (THDi) | <5% |
| Power Factor | ≥0.99 |
| Output | |
| Power Factor | 0.9 |
| Voltage | 208 / 220 / 230 / 240 V |
| Static Accuracy | ±1% |
| Power (VA/W) | 15,000 / 13,500 |
| Total Harmonic Distortion (THDv) – Linear Load | ≤1% |
| Total Harmonic Distortion (THDv) – Non-linear Load | ≤4% |
| Synchronised Frequency | ±4 Hz |
| Frequency | 50 / 60 Hz |
| Frequency Accuracy (Battery Mode) | ±0.05 Hz |
| Total Performance in On-line Mode | 88% ÷ 90% |
| Admissible Overloads | Up to 110% for 10 min; 130% for 1 min |
| Crest Factor | 3:1 |
| Parallel | Yes, up to 3 units (3) |
| Manual Bypass | |
| Type | No breaks |
| Static Bypass | |
| Type and Activation Criteria | Hybrid |
| Transfer Time | Nil |
| Battery | |
| Protection | Against power surges, undervoltages, and alternating current components |
| Battery Type | Not included, Pb-Ca sealed, AGM, maintenance-free |
| Charge Type | I/U (constant current / constant voltage) |
| Recharge Time | 9 hours to 90% |
| Charger | |
| Temperature Voltage Compensation | Yes |
| Communication | |

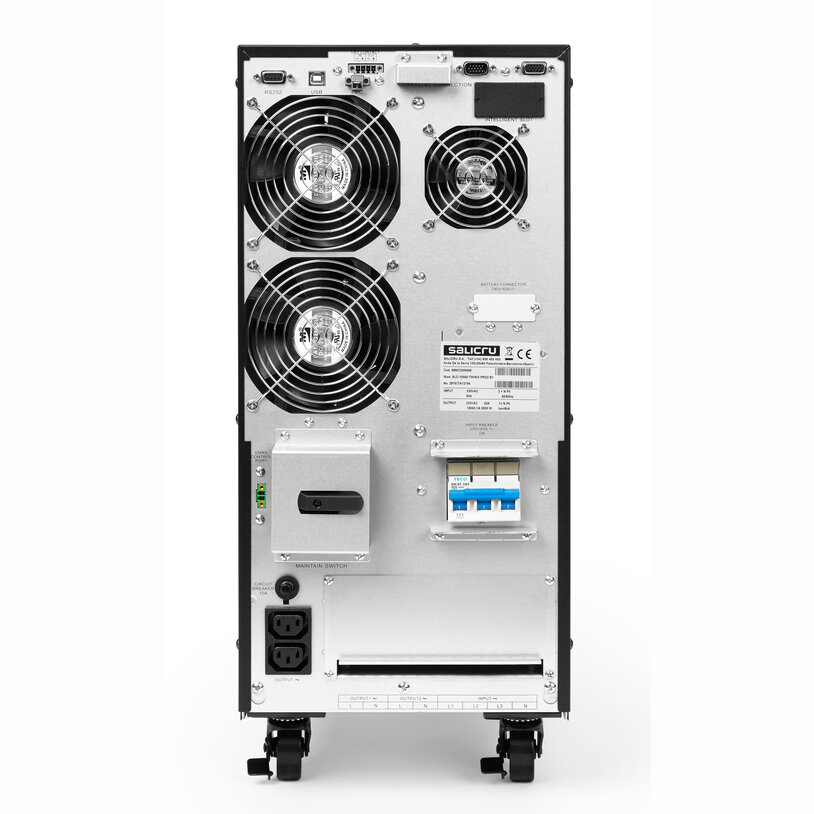

| Ports | USB, RS-232 and Relay |
| Intelligent Slot | Yes, ready for SNMP / AS400 / RS485-Modbus |
| Monitoring Software | Downloadable for Windows, Unix, Linux and Mac |
| Other Functions | |
| Cold Start (Start-up from Batteries) | Yes |
| Operating Modes | |
| Eco-mode | Yes |
| Frequency Converter (CVCF) | Yes (5) |
| General | |
| Operating Temperature | 0°C ÷ 40°C |
| Relative Humidity | Up to 95%, non-condensing |
| Maximum Operating Altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic Noise at 1 Metre | <60 dB |
| Standards | |
| Safety | EN-IEC 62040-1 |
| Electromagnetic Compatibility (EMC) | EN 62040-2 (C3) |
| Operation | VFI-SS-11 (EN-62040-3) |
| Corporate Certification | ISO 9001, ISO 14001, ISO 45001 |
| Dimensions | |
| Depth | 592 mm |
| Width | 250 mm |
| Height | 576 mm |
| Weight | |
| Weight | 37 kg |
Notes:
- (1) Power reduction to 90% for 208 V input
- (2) With 50% load
- (3) Power reduction to 90%
- (4) Power reduction to 60%
- (5) Power reduction to 40%
Performances
- On-line double conversion and DSP control technology.
- Output power factor PF = 1 (1).
- Compact tower format for space saving.
- Active power factor corrector for all input phases.
- Multiple operating modes for better adaptability.
- Equipped for parallel operation as standard, up to 3 devices.
- USB and RS-232 interface for all models as standard.
- Monitoring software for Windows, Linux, Unix, and Mac (downloadable).
- Intelligent slot for SNMP / RS-485 / optocoupler cards.
- Eco-mode operation for increased efficiency.
- Backup extensions available for all power ratings.
- Frequency conversion function.
- EPO – Emergency Power Off.
- Manual and/or automatic programmable battery test.
- SLC Greenergy solution.
Note:
(1) PF = 0.9 for devices with mono-phase input 15 and 20 kVA I/I, and three-phase input SLC TWIN/3 PRO2 models.
