Salicru SPS 1500 ONE IEC
Salicru 1500 VA Line-interactive Uninterruptible Power Systems (UPS) (Socket type IEC)
An uninterruptible power supply (UPS) in a mini tower format with Line-interactive topology, Salicru’s SPS ONE series provides battery backup (with pseudo sine wave inverter output) and overload protection. During power failures, SPS ONE devices provide battery backup to enable computer systems to shut down properly and protect against data loss and electronics damage. Operation through automatic voltage regulation (AVR) to correct small voltage f luctuations without having to use the battery, thus extending its life. The AVR function is essential in areas where voltage fluctuations occur frequently.
It features a UPS/PC communication interface via USB with HID protocol, which allows parameter setting, UPS control and shutdown or hibernation of the computer through the USB port. Compatible with Windows, Linux and Mac operating systems. UPS management and monitoring software is also available for closing files/applications for Windows, Linux and Mac families. Free and downloadable from www.salicru.com.
The SPS ONE series is available in 500, 700, 900, 1100,1500 and 2000 VA power ratings
Applications: Essential security to ensure the continuity of typical office computing tasks.
The numerous computer and multimedia devices we have in our homes, offices and small businesses hold large amounts of personal and professional files and data. All of these systems, however, are highly dependent on one thing: a good quality, stable power supply to ensure that they can be used and enjoyed without interruption. The best solution to prevent interruptions, damage or data loss is the protection provided by a UPS from Salicru’s SPS ONE series.
Technical Specifications
| Technology | |
|---|---|
| Technology Type | Line-interactive |
| Format | |
| Format Type | Tower |
| Input | |
| Rated Voltage | 220 V / 230 V / 240 V AC |
| Voltage Range | Up to 162 V ÷ 290 V |
| Stabiliser | AVR Buck / Boost |
| Rated Frequency | 50 / 60 Hz |
| Autodetection of Frequency | Yes |
| Protection | Thermal re-arm or fuse (depending on model) |
| Output | |
| Rated Voltage | 220 V / 230 V / 240 V AC |
| Voltage Accuracy (Battery Mode) | ±10% |
| Power (VA) | 1500 |
| Waveform (Battery Mode) | Simulated sine wave |
| Frequency | 50 / 60 Hz ± 1 Hz (1) |
| Transfer Time | 2 / 6 ms |

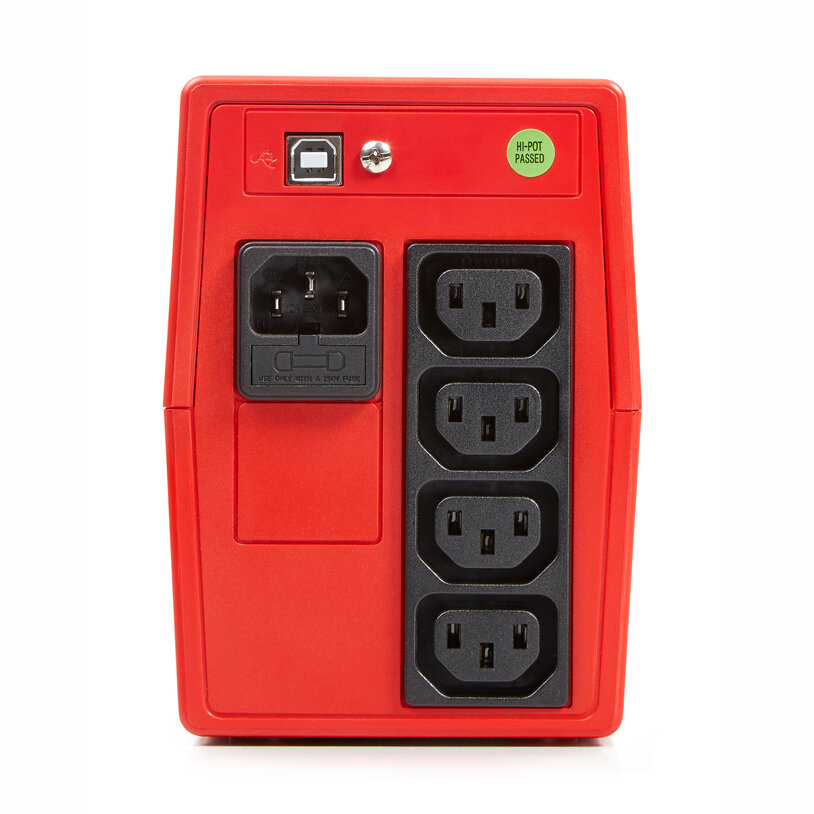

| Socket Type | IEC-C13 |
| Battery | |
| Battery Type | Enclosed Pb-Ca batteries, maintenance-free, sealed, design life 3–5 years |
| Recharge Time | 4–6 hours until 90% capacity |
| User Replaceable Battery | Yes |
| Backup Time | Up to 20 minutes |
| Battery Replacement Alarm | Yes |
| Communication | |
| Ports | USB HID |
| Monitoring Software | Compatible with Windows, Linux, Unix, and Mac |
| Downloadable From | support.salicru.com |
| Indications | |
| Type | LED |
| Operating Modes | Normal / Stabilisation (AVR) / Battery |
| Mains Present | Green LED |
| Alarm | Battery / low battery / overcharge / fault |
| Audible | Every 10 sec for battery operation, every 1 sec for low battery, every 0.5 sec for overcharge, continuous for fault, every 2 sec for battery replacement |
| Failure | Red LED |
| Other Functions | |
| Cold Start (Start-up from Batteries) | Yes |
| Automatic Restart | Yes, after the end of backup time |
| General | |
| Operating Temperature | 0°C ÷ +40°C |
| Relative Humidity | Up to 90%, without condensation |
| Maximum Operating Altitude | 2,400 masl |
| Acoustic Noise at 1 Metre | <40 dB |
| Standards | |
| Safety | EN IEC 62040-1 |
| Electromagnetic Compatibility (EMC) | EN IEC 62040-2 |
| Operation | EN IEC 62040-3 |
| Corporate Certification | ISO 9001, ISO 14001, ISO 45001 |
| Dimensions | |
| Depth | 320 mm |
| Width | 130 mm |
| Height | 182 mm |
| Weight | |
| Weight | 10.4 kg |
Note: (1) Battery mode
Performances
- Line-interactive technology.
- Backup battery for power supply interruptions.
- Overvoltage protection for sensitive devices.
- Automatic voltage stabilisation (AVR).
- Pseudo sine wave output voltage.
- USB interface with HID protocol for all models.
- Management and monitoring software for Windows, Linux, and Mac.
- A single on/off button for ease of use.

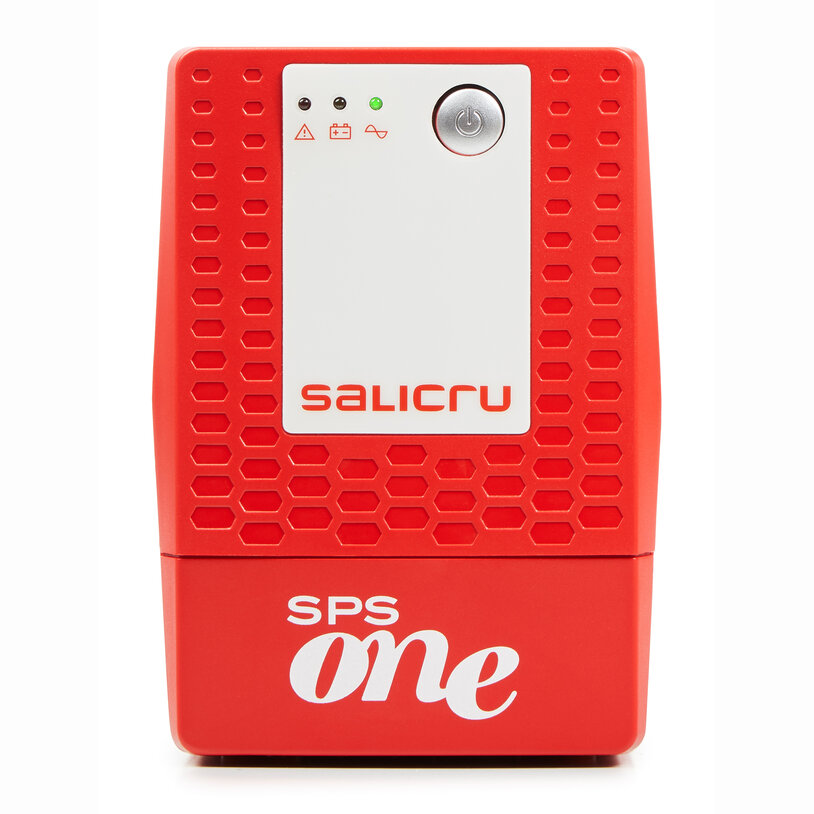

- LED status indications.
- Automatic restart when power supply is restored.
- Compact mini tower format.
- Protection against overloads, short circuits, and transients.
- Economic guarantee for connected devices (EU countries only).
- SLC Greenergy solution.
